Next to our micropumps and control units we are offering auxiliary equipment as well, which allows you a quick and easy assembly of your application.

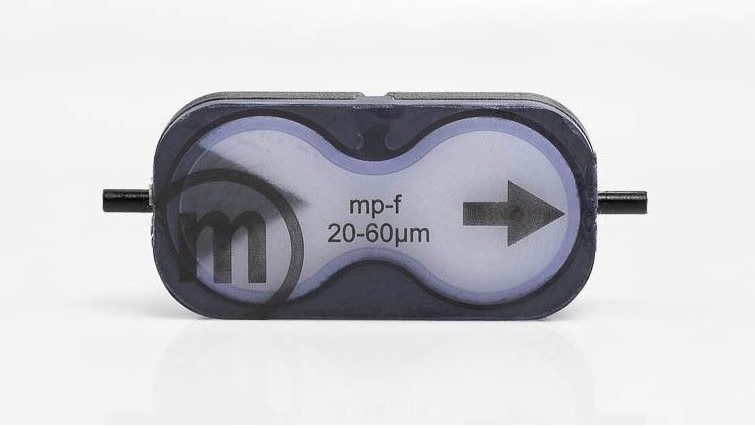

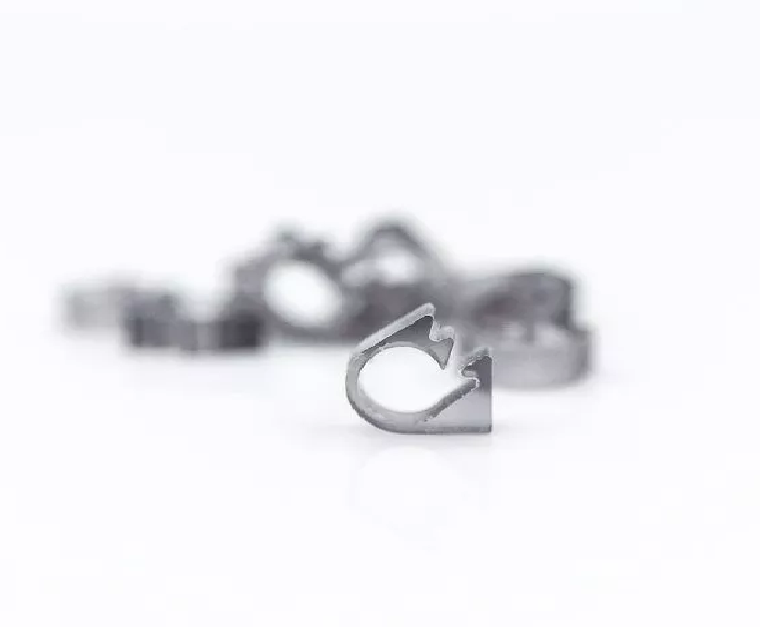

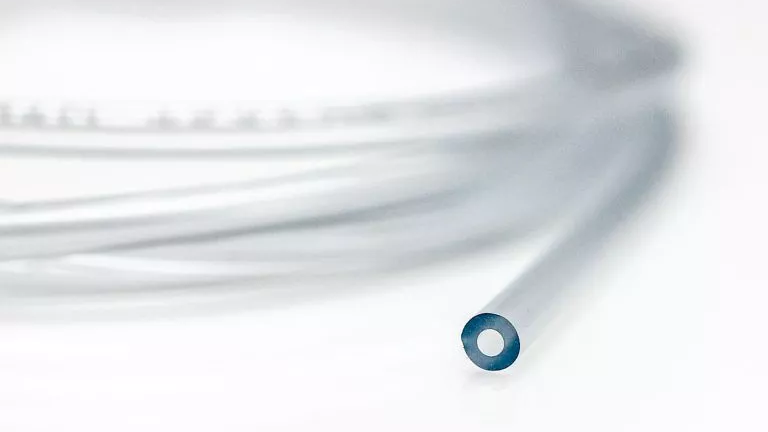

mp-t tygon tubing
Transparent Tygon® tubing with an inner diameter of 1.3 mm for the mp6-hyb, mp6-liq, mp6-pi, mp6-gas and mp6-gas+ micropumps, and with an inner diameter of 1.02 mm for the mp6-pp micropump can be ordered in meters.
Properties and benefits:
mp-cv check valve
When the micropump is switched off, a back flow of the pumping medium, depending on a differential pressure between in- and outlet is possible.
In order to impede a back flow, Bartels Mikrotechnik offers a passive check valve integrated in stainless steel.
The connection of the valves with the micropump can be done easily with suitable tubing.
|dimensions||21 mm x 5.5 mm (length x wrench size)
0.82677 x 0.2165 in.
|materials||silicone, stainless steel|
|fluid connectors||for tubing with an ID of 1.3 mm|
|cracking pressure||typical < 35 mbar|
|max. back pressure||500 mbar|
|typical leak rate||< 20µl/h for DI-water (at 500 mbar)|

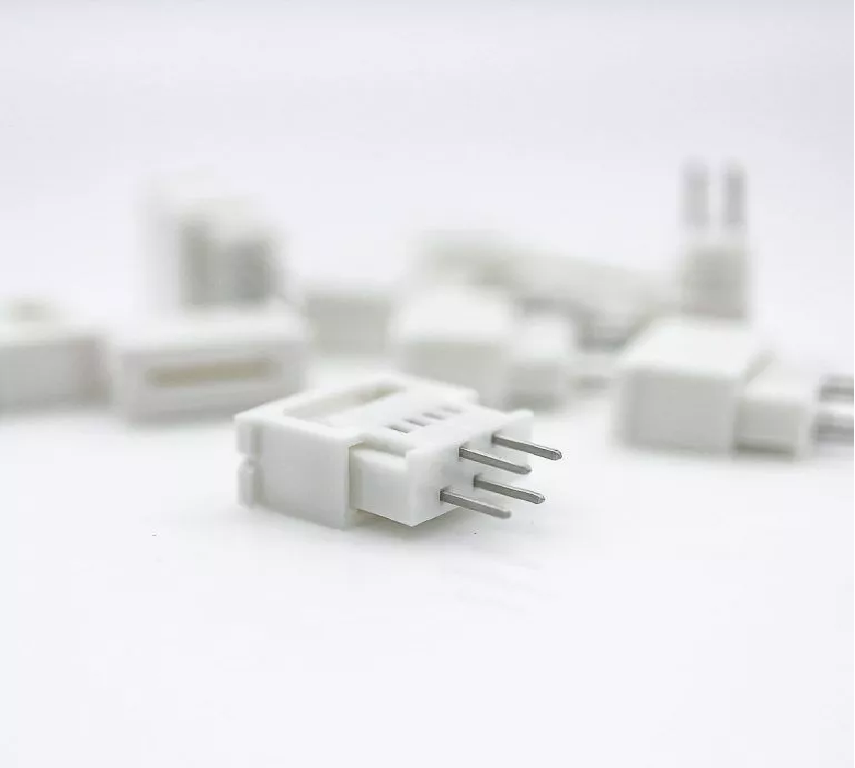

The mp6-hyb, mp6-liq, mp6-pi, mp6-pp, mp6-gas and mp6-gas+ pump can be connected via a FCC connector. Each piezo has a single lead for the negative and the positive supply voltage.
The connector is available in different versions to fit various applications.
|number of contacts||4 contacts|
|pitch spacing||1.25 mm|
|contact termination type||through hole|
|number of rows||1 row|
|contact plating||tin plated contacts|
|contact material||phosphor bronze|
|FFC/FPC thickness||0.3 mm|

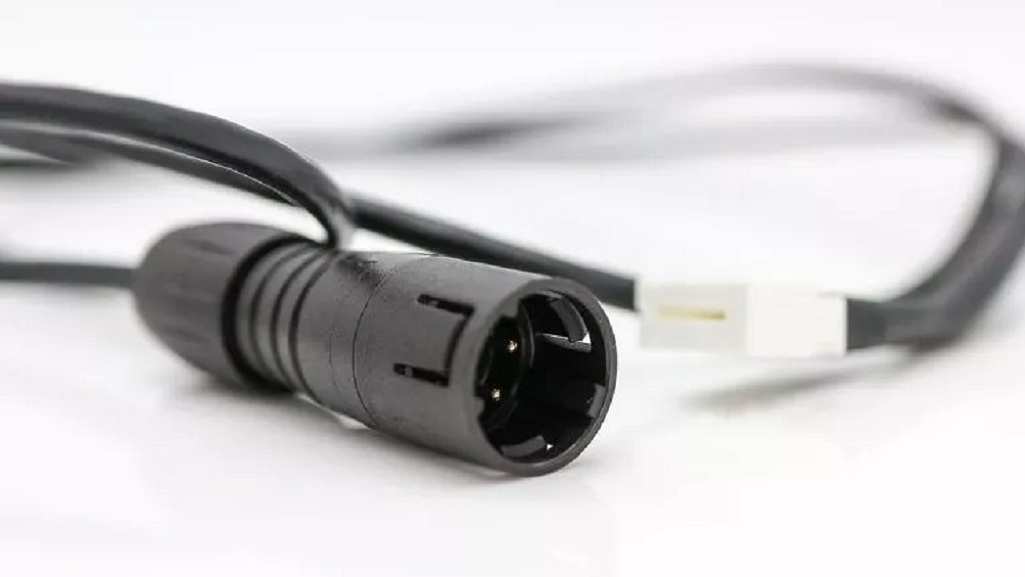

The micropumps mp6-hyb, mp6-liq, mp6-pi, mp6-pp, mp6-gas and mp6-gas+ can be connected to the mp-x controller by means of the mp6-con cable.
|cable length||1 m|
|molex connector||4 pole|
|side 1||FCC/FPC thickness 0.3 mm
grid dimensions 1.25 mm
tin plated contacts
|side 2||truss cable plug 620|

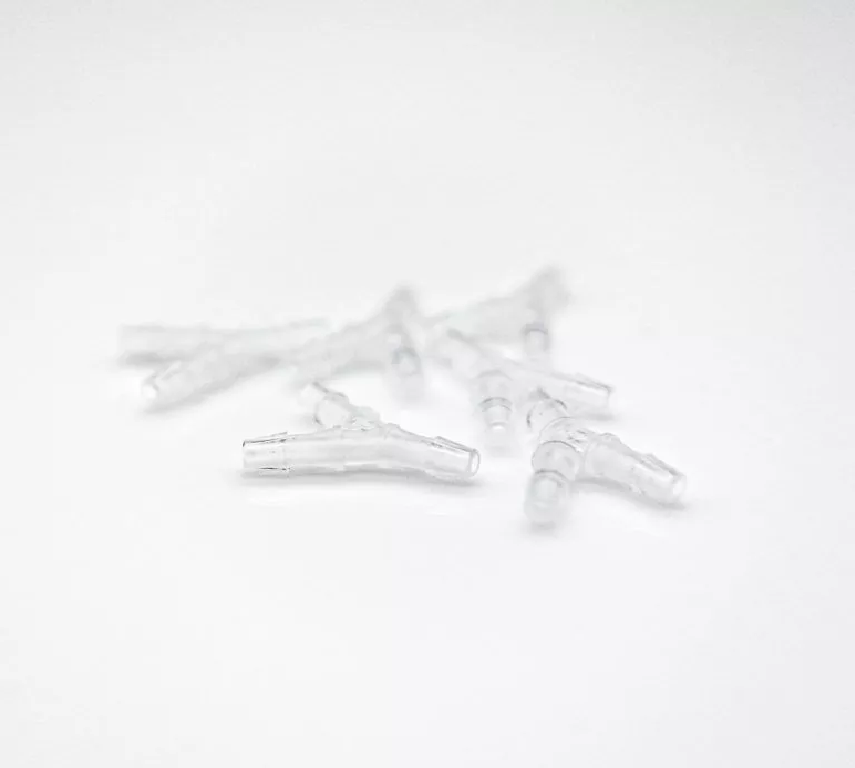

mp-y tubing connector
Y-connector for tubing made of natural coloured PP, for the parallel use of two micropumps.
|Material:||polypropylene (PP) for tubing with an ID of 1,3 – 2,6 mm
0.0512 – 0.1024 in.
